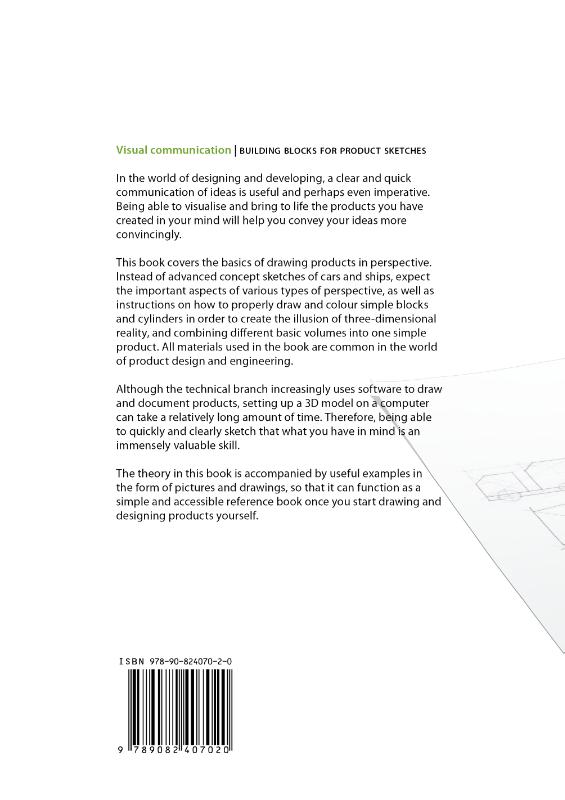

Table of contentsIntroduction & Reading guide 71 | Materials & Techniques 91.1 | Drawing materials 101.2 | Line drawing 121.3 | Marker techniques 181.4 | Pastel techniques 201.5 | Colours 221.6 | Lay-out 242 | Perspective 292.1 | Horizon line 302.2 | Central perspective 342.3 | Two-point perspective 362.4 | Foreshortening 382.5 | Three-point perspective 422.6 | Isometry 463 | Block shapes 493.1 | Setting up a drawing in perspective 503.2 | Light and shadow 563.3 | Colouring blocks 684 | Cylinders 734.1 | Circles and ellipses 744.2 | Ellipses and perspective 784.3 | Vertical cylinders 804.4 | Colour and shadow on vertical cylinders 824.5 | Cylinders in perspective 864.6 | Colour and shadow on horizontal cylinders 925 | Combining shapes 975.1 | Two additional basic shapes 985.2 | The basic volumes 1105.3 | Drawing simple products 1125.4 | Drawing more complex products 1165.5 | Rounded shapes 1185.6 | Cast shadows of a combined volume 124Further sketching 130Sketch together 136Acknowledgments 138Literature 138Visual communication | Building blocks for product sketchesIn the world of designing and developing, a clear and quick communication of ideas is useful and perhaps even imperative. Being able to visualise and bring to life the products you have created in your mind will help you convey your ideas more convincingly.This book covers the basics of drawing products in perspective. Instead of advanced concept sketches of cars and ships, expect the important aspects of various types of perspective, as well as instructions on how to properly draw and colour simple blocks and cylinders in order to create the illusion of three-dimensional reality, and combining different basic volumes into one simple product. All materials used in the book are common in the world of product design and engineering. Although the technical branch increasingly uses software to draw and document products, setting up a 3D model on a computer can take a relatively long amount of time. Therefore, being able to quickly and clearly sketch that what you have in mind is an immensely valuable skill. The theory in this book is accompanied by useful examples in the form of pictures and drawings, so that it can function as a simple and accessible reference book once you start drawing and designing products yourself.
